微晶低姿态音叉晶体专用于物联网和汽车应用CC7V-T1A-32.768k-9pF-20PPM-TB-QA，Micro Crystal AG是一家成立于瑞士的晶振品牌公司，公司成立至今已有几十年的发展，通过自身的努力与奋斗，开发大量优质的晶振产品，所研发生产的产品包含有源晶振，石英晶振，SMD晶振等产品，作为一名尖端的制造商，微晶公司通过自身不懈努力，为全球领先的可穿戴设备、物联网、移动电话、消费产品、计算机、汽车电子、手表、工业控制以及医疗植入设备和其他高可靠性产品应用制造商提供服务。
| 制造商零件编号 | 进口晶振品牌 | 描述 | 产品类型 | 频率 | 频率稳定性 | 容差 |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| 202684-MC03 | 微晶音叉晶体 | 晶体 32.768 kHz 4.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| 202273-EA00 | 微晶音叉晶体 | 标准时钟振荡器 128MHz 20ppm -55C +85C | Clock Oscillators | 128 MHz | 30 PPM | |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | 微晶音叉晶体 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| OV-7604-C7-32.768kHz-20PPM-TB-QC | 微晶音叉晶体 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C | Clock Oscillators | 32.768 kHz | ||
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | 微晶音叉晶体 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+125C | Crystals | 32.768 kHz | 10 PPM | |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | Crystals | 32.768 kHz | 10 PPM | |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | 微晶音叉晶体 | 晶体 32.768 kHz 7.0 pF +/-10 PPM LOW ESR | Crystals | 32.768 kHz | 10 PPM | |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 100 kHz | 100 PPM | |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF 100 PPM -40/+125C | Crystals | 32.768 kHz | 100 PPM | |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals | 32.768 kHz | 20 PPM | |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals | 32.768 kHz | 100 PPM | |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | 微晶SMD晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 100 kHz | 100 PPM | |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | 微晶音叉晶体 | 晶体 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | 微晶音叉晶体 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | ||
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | 微晶音叉晶体 | 晶体 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals | 1.8432 MHz | 500 PPM | |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | 微晶音叉晶体 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+125C | Clock Oscillators | 32.768 kHz | ||
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | 微晶音叉晶体 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | |
| OV-7604-C7-32.768k-10PPM-TB-QA | 微晶音叉晶体 | 标准时钟振荡器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 | Clock Oscillators | 32.768 kHz | ||
| OV-7604-C7-32.768k-20PPM-TA-QA | 微晶音叉晶体 | 标准时钟振荡器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | ||
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1 MHz | 100 PPM | |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | 微晶音叉晶体 | 晶体 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 153.6 kHz | 30 PPM | |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | 微晶音叉晶体 | 晶体 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals | 307.2 kHz | 100 PPM | |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.8432 MHz | 100 PPM | |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | 微晶音叉晶体 | 晶体 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.8432 MHz | 100 PPM | |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | 微晶音叉晶体 | 晶体 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 40 kHz | 20 PPM | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | 微晶音叉晶体 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals | 32.768 kHz | 10 PPM | |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | 微晶音叉晶体 | 晶体 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals | 1.8432 MHz | 500 PPM | |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | 微晶音叉晶体 | 晶体 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.2288 MHz | 100 PPM | |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | 微晶音叉晶体 | 晶体 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.2288 MHz | 100 PPM | |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | 微晶音叉晶体 | 晶体 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 40 kHz | 30 PPM | |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | 微晶音叉晶体 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM |

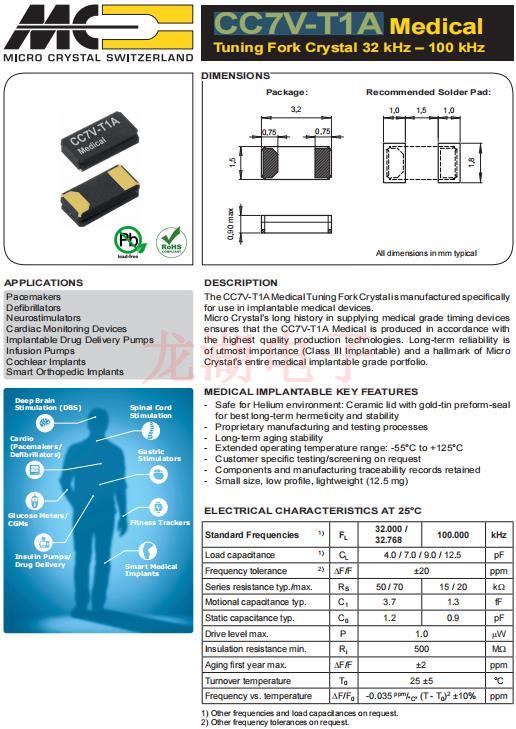

微晶推出编码CC7V-T1A-32.768k-9pF-20PPM-TB-QA，CC7V-T1A是一种低频贴片石英晶体单元，它 包含音叉石英晶体谐振器。它在以下条件下运作 带陶瓷盖的密封陶瓷包装中的真空。特征：金锡预制件的出色密封。 密封保证了高稳定性和低老化。 适用于扩展的工作温度范围。 体积小，低姿态，重量轻(12.5毫克)。 高抗冲击和振动。 100%无铅，符合RoHS标准。 提供符合AEC-Q200的汽车认证。
