C2E平板电脑晶振,C2E-12.000-18-1020-X-R,安基低损耗晶振

频率：12MHZ

尺寸：2.5x2.0mm

C2E平板电脑晶振,C2E-12.000-18-1020-X-R,安基低损耗晶振，尺寸2.5x2.0mm，频率12MHZ，Aker进口晶振，安基石英晶振，轻薄型晶振，石英晶振，无源石英晶体，石英晶体谐振器，2520mm小尺寸晶振，石英贴片晶振，SMD晶振，无源晶振，石英振动子，四脚贴片晶振，SMD无源晶体，高质量晶振，高性能晶振，低损耗石英晶振，低功耗晶振，低耗能晶振，平板电脑晶振，娱乐设备晶振，网络设备晶振，便携式设备晶振，智能手机晶振，蓝牙晶振，智能音响晶振，仪器仪表晶振，数字视频晶振，具有高质量低损耗的特点.

无源晶振产品特别适合用于平板电脑，娱乐设备，网络设备，便携式设备，智能手机，蓝牙，智能音响，仪器仪表，数字视频等领域.C2E平板电脑晶振,C2E-12.000-18-1020-X-R,安基低损耗晶振.

订购热线：0755-29952551

LH-1

LH-2

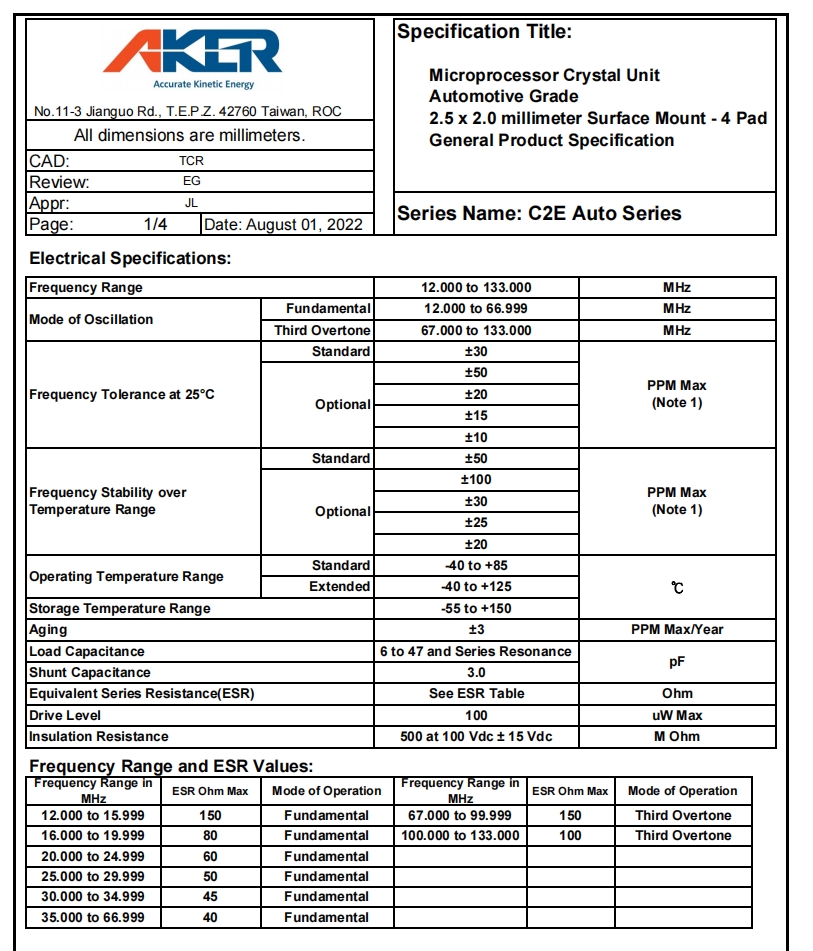

C2E平板电脑晶振,C2E-12.000-18-1020-X-R,安基低损耗晶振 参数表

Frequency Range

12.000

MHz

Mode of Oscillation

Fundamental

12.000 to 66.999

MHz

Third Overtone

67.000 to 133.000

MHz

Frequency Tolerance at 25°C

Standard

±30

PPM Max
(Note 1)

Optional

±50

±20

±15

±10

Frequency Stability over
Temperature Range

Standard

±50

PPM Max
(Note 1)

Optional

±100

±30

±25

±20

Operating Temperature Range

Standard

-40 to +85

℃

Extended

-40 to +125

Storage Temperature Range

-55 to +150

Aging

±3

PPM Max/Year

Load Capacitance

6 to 47 and Series Resonance

Shunt Capacitance

3.0

Equivalent Series Resistance(ESR)

See ESR Table

Ohm

Drive Level

100

uW Max

Insulation Resistance

500 at 100 Vdc ± 15 Vdc

M Ohm

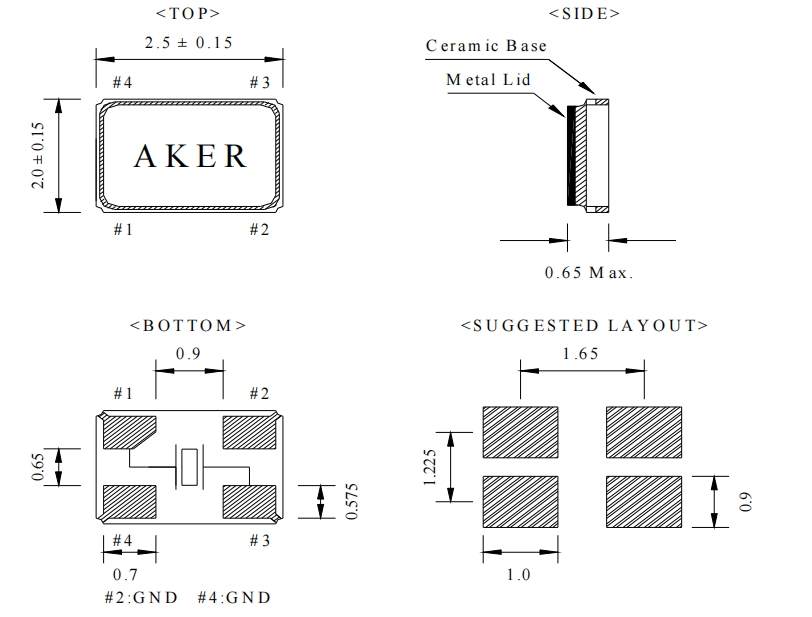

C2E平板电脑晶振,C2E-12.000-18-1020-X-R,安基低损耗晶振 尺寸图

C2E平板电脑晶振,C2E-12.000-18-1020-X-R,安基低损耗晶振

产品特点:

微处理器SMD晶体单元

低调

2.5x2.0毫米表面安装-4个衬垫

通用产品规范

Mfr Part #	晶振厂家	Description	Series	Frequency	Frequency Stability	Frequency Tolerance
C3E-16.000-12-1015-X-M	Aker Technology Corp	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz	±15ppm	±10ppm
C16-32.000-8-3030-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 8PF SMD	C16	32 MHz	±30ppm	±30ppm
C16-26.000-8-1520-R	Aker Technology Corp	CRYSTAL 26.0000MHZ 8PF SMD	C16	26 MHz	±20ppm	±15ppm
C5S-26.000-16-1010-R	Aker Technology USA	CRYSTAL 26.0000MHZ 16PF SMD	C5S	26 MHz	±10ppm	±10ppm
C5S-8.000-18-3030-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C5S	8 MHz	±30ppm	±30ppm
CAA-4.000-18-3050-X-R	Aker Technology Corp	CRYSTAL 4MHZ 18PF SMD	CAA	4 MHz	±50ppm	±30ppm
CAA-11.0592-18-3050-R	Aker Technology Corp	CRYSTAL 11.0592MHZ 18PF SMD	CAA	11.0592 MHz	±50ppm	±30ppm
CAA-8.000-18-3050-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	CAA	8 MHz	±50ppm	±30ppm
CAA-40.000-18-3050-R	Aker Technology Corp	CRYSTAL 40MHZ 18PF SMD	CAA	40 MHz	±50ppm	±30ppm
C3E-24.000-9-1010-R	Aker Technology Corp	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz	±10ppm	±10ppm
C3E-12.000-12-1020-X-R	Aker Technology Corp	CRYSTAL 12MHZ 12PF SMD	C3E	12 MHz	±10ppm	±20ppm
C3E-12.000-18-1020-X-R	Aker Technology Corp	CRYSTAL 12MHZ 18PF SMD	C3E	12 MHz	±10ppm	±20ppm
C3E-25.000-20-1015-X-R	Aker Technology Corp	CRYSTAL 25MHZ 20PF SMD	C3E	25 MHz	±15ppm	±10ppm
C3E-24.000-9-1015-X-R	Aker Technology Corp	CRYSTAL 24MHZ 9PF SMD	C3E	24 MHz	±15ppm	±10ppm
C3E-16.000-9-1015-X-R	Aker Technology Corp	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz	±15ppm	±10ppm
C2E-12.000-18-1020-R	Aker Technology Corp	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz	±20ppm	±10ppm
C3E-8.000-20-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz	±20ppm	±10ppm
C3E-8.000-18-1020-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	C3E	8 MHz	±20ppm	±10ppm
C3E-8.000-8-1015-R	Aker Technology Corp	CRYSTAL 8MHZ 8PF SMD	C3E	8 MHz	±10ppm	±15ppm
C3E-12.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C3E X1	12 MHz	±50ppm	±20ppm
C3E-16.000-10-3050-X1-R	Aker Technology Corp	CRYSTAL 16MHZ 10PF SMD AEC-Q200	C3E X1	16 MHz	±50ppm	±30ppm
C16-32.000-8-1515-X-R	Aker Technology Corp	CRYSTAL 32MHZ 8PF SMD	C16	32 MHz	±15ppm	±15ppm
C3E-20.000-8-3050-X1-R	Aker Technology Corp	CRYSTAL 20MHZ 8PF SMD AEC-Q200	C3E X1	20 MHz	±50ppm	±30ppm
C2E-12.000-18-1020-X-R	Aker Technology Corp	CRYSTAL12MHZ 18PF SMD	C2E	12 MHz	±20ppm	±10ppm
C5S-12.000-18-1020-R	Aker Technology Corp	CRYSTAL 12.0000MHZ 18PF SMD	C5S	12 MHz	±20ppm	±10ppm
C3E-8.000-18-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C3E	8 MHz	±20ppm	±10ppm
C3E-8.000-12-1020-M	Aker Technology Corp	CRYSTAL 8MHZ 12PF SMD	C3E	8 MHz	±10ppm	±20ppm
C2E-12.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 8PF SMD AEC-Q200	C2E X1	12 MHz	±50ppm	±20ppm
C3E-16.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 10MHZ 10PF SMD AEC-Q200	C3E X1	10 MHz	±50ppm	±20ppm
C3E-30.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 30MHZ 8PF SMD AEC-Q200	C3E X1	30 MHz	±50ppm	±20ppm
C7S-12.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 12MHZ 12PF SMD	C7S	12 MHz	±30ppm	±30ppm
C7S-8.000-18-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 18PF SMD	C7S	8 MHz	±20ppm	±10ppm
C7S-8.000-18-1030-X-R	Aker Technology Corp	CRYSTAL 8MHZ 18PF SMD	C7S	8 MHz	±30ppm	±10ppm
CA4-16.000-18-3050-R	Aker Technology Corp	CRYSTAL 16MHZ 18PF SMD	CA4	16 MHz	±50ppm	±30ppm
CA4-8.000-16-3050-R	Aker Technology Corp	CRYSTAL 8.000MHZ 16PF SMD	CA4	8 MHz	±50ppm	±30ppm
C3E-8.000-10-1020-M	Aker Technology Corp	CRYSTAL 8MHZ 10PF SMD	C3E	8 MHz	±20ppm	±10ppm
C16-96.000-8-1520-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 8PF SMD	-	96 MHz	±15ppm	±20ppm
C1E-76.800-10-1012-X-M	Aker Technology Corp	CRYSTAL 76.8MHZ 10PF SMD	C1E	76.8 MHz	±10ppm	±10ppm
C1E-80.000-10-1015-X-M	Aker Technology Corp	CRYSTAL 80MHZ 10PF SMD	C1E	80 MHz	±10ppm	±10ppm
C1E-76.800-8-1012-X-M	Aker Technology Corp	CRYSTAL 76.8MHZ 8PF SMD	C1E	46.8 MHz	±10ppm	±10ppm
C1E-80.000-8-1015-X-M	Aker Technology Corp	CRYSTAL 80MHZ8PF SMD	C1E	80 MHz	±10ppm	±10ppm
C3E-24.576-12-3030-X-R	Aker Technology Corp	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz	±30ppm	±30ppm
C3E-30.000-12-1020-X-R	Aker Technology Corp	CRYSTAL 30MHZ 12PF SMD	C3E	30 MHz	±10ppm	±20ppm
C3E-12.000-12-1015-R	Aker Technology Corp	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz	±15ppm	±10ppm
C3E-25.000-8-1015-X-R	Aker Technology Corp	CRYSTAL 25.0000MHZ 8PF SMD	C3E	25 MHz	±15ppm	±10ppm
C3E-26.000-10-1015-X-R3	Aker Technology Corp	CRYSTAL 26.0000MHZ 10PF SMD	C3E	26 MHz	±15ppm	±10ppm
C16-26.000-8-1010-R	Aker Technology Corp	CRYSTAL 26MHZ 8PF SMD	C16	26 MHz	±10ppm	±10ppm
C3E-16.000-8-2050-X1-R	Aker Technology Corp	CRYSTAL 16MHZ 8PF SMD AEC-Q200	C3E X1	16 MHz	±50ppm	±20ppm
C3E-8.000-12-1020-R	Aker Technology Corp	CRYSTAL 8.0000MHZ 12PF SMD	C3E	8 MHz	±20ppm	±10ppm
C2E-12.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 12MHZ 10PF SMD AEC-Q200	C2E X1	12 MHz	±50ppm	±20ppm
C1E-96.000-8-1216-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 8PF SMD	C1E X2	96 MHz	±16ppm	±12ppm
C3E-12.000-12-3030-X-R	Aker Technology Corp	CRYSTAL 12.0000MHZ 12PF SMD	C3E	12 MHz	±30ppm	±30ppm
C3E-27.120-12-1010-R	Aker Technology Corp	CRYSTAL 27.1200MHZ 12PF SMD	C3E	27.12 MHz	±10ppm	±10ppm
C3E-24.576-12-1010-R	Aker Technology Corp	CRYSTAL 24.5760MHZ 12PF SMD	C3E	24.576 MHz	±10ppm	±10ppm
C3E-16.000-12-1015-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 12PF SMD	C3E	16 MHz	±15ppm	±10ppm
C3E-13.560-12-1530-X-R	Aker Technology Corp	CRYSTAL 13.5600MHZ 12PF SMD	C3E	13.56 MHz	±30ppm	±15ppm
C2E-16.000-10-1010-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 10PF SMD	C2E	16 MHz	±10ppm	±10ppm
C1E-24.000-10-1015-M	Aker Technology Corp	CRYSTAL 24.0000MHZ 10PF SMD	C1E	24 MHz	±15ppm	±10ppm
C2E-25.000-10-3030-X-M	Aker Technology Corp	CRYSTAL 25.0000MHZ 10PF SMD	C2E	25 MHz	±30ppm	±30ppm
C2E-48.000-10-1020-X-R	Aker Technology Corp	CRYSTAL 48MHZ SMD FOR WIFI	C2E	48 MHz	±20ppm	±10ppm
C3E-20.000-10-3050-X1-R	Aker Technology Corp	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C3E X1	20 MHz	±50ppm	±30ppm
C1E-96.000-9.9-1216-X2-R	Aker Technology Corp	CRYSTAL 96MHZ 9.9PF SMD	C1E	96 MHz	±16ppm	±12ppm
C1E-52.000-8-1012-X-M	Aker Technology Corp	CRYSTAL 52MHZ 10PF SMD	C1E	52 MHz	±10ppm	±10ppm
C1E-52.000-10-1012-X-M	Aker Technology Corp	CRYSTAL 52MHZ 8PF SMD	C1E	52 MHz	±10ppm	±10ppm
C3E-27.120-12-1020-X-R	Aker Technology Corp	CRYSTAL 27.120MHZ 12PF SMD	C3E	27.12 MHz	±10ppm	±20ppm
C3E-16.000-9-1010-R	Aker Technology Corp	CRYSTAL 16MHZ 9PF SMD	C3E	16 MHz	±10ppm	±10ppm
C5S-24.000-20-3030-X-R	Aker Technology Corp	CRYSTAL 24MHZ 20PF SMD	C5S	24 MHz	±30ppm	±30ppm
C5S-12.000-16-5050-X-R	Aker Technology Corp	CRYSTAL 12MHZ 16PF SMD	C5S	12 MHz	±50ppm	±50ppm
C5S-20.000-20-3050-X-R	Aker Technology Corp	CRYSTAL 20MHZ 20PF SMD	C5S	20 MHz	±30ppm	±50ppm
C5S-12.000-16-3030-X-R	Aker Technology USA	CRYSTAL 12.0000MHZ 16PF SMD	C5S	12 MHz	±30ppm	±30ppm
C5S-8.000-12-2020-X-R	Aker Technology Corp	CRYSTAL 8MHZ 12PF SMD	C5S	8 MHz	±20ppm	±20ppm
C6S-16.000-12-5050-X-R	Aker Technology Corp	CRYSTAL 16MHZ 12PF SMD	C6S	16 MHz	±50ppm	±50ppm
C2E-20.000-10-2050-X1-R	Aker Technology Corp	CRYSTAL 20MHZ 10PF SMD AEC-Q200	C2E X1	20 MHz	±50ppm	±20ppm
C5S-8.000-18-3030-X-R	Aker Technology USA	CRYSTAL 8.0000MHZ 18PF SMD	C5S	8 MHz	±30ppm	±30ppm
C5S-8.000-16-3030-X-R	Aker Technology USA	CRYSTAL 8.0000MHZ 16PF SMD	C5S	8 MHz	±30ppm	±30ppm
C3E-16.000-8-50100-X1-R	Aker Technology Corp	CRYSTAL 16.0000MHZ 8PF SMD	C3E	16 MHz	±100ppm	±50ppm
C1E-32.000-8-1015-X-R	Aker Technology Corp	CRYSTAL 32.0000MHZ 8PF SMD	C1E	32 MHz	±15ppm	±10ppm
C3E-16.000-8-50150-A-X3-R	Aker Technology Corp	UWB CRYSTAL, 3225, 16.000MHZ, 8P	C3E Auto	16 MHz	±150ppm	±50ppm
C1E-40.000-8-1030-A-X2-R	Aker Technology Corp	UWB CRYSTAL, 2016, 40.000MHZ, 8P	C1E Auto	40 MHz	±30ppm	±10ppm
C1E-40.000-8-1550-X1-R	Aker Technology Corp	UWB CRYSTAL, 2016, 40.0000MHZ, 8	C1E	40 MHz	±50ppm	±15ppm
C1E-16.000-10-1520-X-R	Aker Technology Corp	UWB CRYSTAL, 2016, 16.000MHZ, 10	C1E	16 MHz	±20ppm	±15ppm
C3E-8.000-8-10150-A-X3-R	Aker Technology Corp	UWB CRYSTAL, 3225, 8.000MHZ, 8PF	C3E Auto	8 MHz	±150ppm	±10ppm
C1E-55.200-8-1035-A-X2-R	Aker Technology Corp	UWB CRYSTAL, 2016, 55.200MHZ, 8P	C1E Auto	55.2 MHz	±35ppm	±10ppm
C16-40.000-8-1020-A-X-R	Aker Technology Corp	UWB CRYSTAL, 1612, 40.0000MHZ, 8	C16 Auto	40 MHz	±20ppm	±10ppm
C1E-48.000-8-1020-X2-M	Aker Technology Corp	CRYSTAL 48MHZ 8PF SMD crystal	C1E	48 MHz	±10ppm	±10ppm
C1E-48.000-10-1020-X2-M	Aker Technology Corp	CRYSTAL 48MHZ 10PF	C1E	48 MHz	±10ppm	±10ppm
C1E-40.000-8-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 40.000MHZ, 8PF, S	C1E Auto	40 MHz	±50ppm	±10ppm
C3E-16.000-8-10150-A-X3-R	Aker Technology Corp	CRYSTAL, 3225, 16.000MHZ, 8PF, S	C3E Auto	16 MHz	±150ppm	±10ppm
C1E-32.000-8-1550-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 32.000MHZ, 8PF, S	C1E Auto	32 MHz	±50ppm	±15ppm
C1E-24.000-8-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 24.000MHZ, 8PF, S	C1E Auto	24 MHz	±50ppm	±10ppm
C1E-25.000-12-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 1612, 25.000MHZ, 12PF,	C1E Auto	25 MHz	±50ppm	±10ppm
C3E-24.000-12-1050-A-X1-R	Aker Technology Corp	CRYSTAL, 3225, 24.000MHZ, 12PF,	C3E Auto	24 MHz	±50ppm	±10ppm
C3E-8.000-8-1080-A-X1-R	Aker Technology Corp	CRYSTAL, 3225, 8.000MHZ, 8PF, SMD	C3E Auto	8 MHz	±80ppm	±10ppm
